ELAWA Farm 60'' Bench
with Two Supports

LS 1189

20" high
60" x 24" top
4.5 " x 16.5" base of each support
650 lb.


Bench Tops are also available 26" wide and
can be ordered in other lengths or curvatures.



Footings are required under each bench Support. The footings must be level with each other to allow the bench Top to be level. Holes for drift pins are predrilled in the Cut Natural Limestone Top and into the Supports. A mortar bed must be used on top of each footing and each Support to ensure a safe, level and durable installation.

bench
ELAWA Farm - Bench Support
LS 1175

15.25" high
6.25" x 16.5" top
4.5 " x 16.5" base
85 lb.

bench

side detail of
Limestone 60" Bench Top


4" high
60" long
24" wide
480 lb.

Bench Tops are also available 26" wide and
can be ordered in other lengths or curvatures

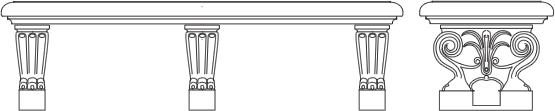

ELAWA Farm 72'' Bench
with Three Supports

LS 1190

20" high
72" x 24" top
4.5 " x 16.5" base of each support
830 lb.


Bench Tops are also available 26" wide and
can be ordered in other lengths or curvatures

Footings are required under each bench Support. The footings must be level with each other to allow the bench Top to be level. Holes for drift pins are predrilled in the Cut Natural Limestone Top and into the Supports. A mortar bed must be used on top of each footing and each Support to ensure a safe, level and durable installation.

bench
ELAWA Farm - Bench Support
LS 1175

15.25" high
6.25" x 16.5" top
4.5 " x 16.5" base
85 lb.

top

side detail of
Limestone 72" Bench Top


4" high
72" long
24" wide
480 lb.

Bench Tops are also available 26" wide and
can be ordered in other lengths or curvatures








Limestone 72'' Bench
with Three Fluted Supports

LS 1170

19" high
72" x 18" top
6" x 13" base of each support
620 lb.

Bench tops can be ordered in custom lengths and curvatures.


Footings are required under each bench Support. The footings must be level with each other to allow the bench Top to be level. Holes for drift pins are predrilled in the Cut Natural Limestone Top and into the Supports. A mortar bed must be used on top of each footing and each Support to ensure a safe, level and durable installation.



support
Cut Natural Limestone
Fluted - Bench Support


15" high
6" x 13" top
6" x 13" base
77 lb.

top

side detail of
Limestone 72" Bench Top


4" high
72" long
18" wide
389 lb.

Bench tops can be ordered in custom lengths and curvatures.







Limestone 60" Bench
with Two Fluted Supports


LS 1172

19" high
60" x 18" top
6" x 13" base of each support
478 lb.

Bench tops can be ordered in custom lengths and curvatures.


Footings are required under each bench Support. The footings must be level with each other to allow the bench Top to be level. Holes for drift pins are predrilled in the Cut Natural Limestone Top and into the Supports. A mortar bed must be used on top of each footing and each Support to ensure a safe, level and durable installation.
Cut Natural Limestone
Fluted - Bench Support


15" high
6" x 13" top
6" x 13" base
77 lb.


side detail of
Limestone 60" Bench Top


4" high
60" long
18" wide
324 lb.

Bench tops can be ordered in custom lengths and curvatures.






Limestone 72" Bench
with Three Smooth Supports

LS 1173

19" high
72" x 18" top
6" x 13" base of each support
630 lb.



Footings are required under each bench Support. The footings must be level with each other to allow the bench Top to be level. Holes for drift pins are predrilled in the Cut Natural Limestone Top and into the Supports. A mortar bed must be used on top of each footing and each Support to ensure a safe, level and durable installation.

Cut Natural Limestone
Smooth - Bench Support


15" high
6" x 13" top
6" x 13" base
80 lb.



side detail of
Limestone 72" Bench Top


4" high
72" long
18" wide
389 lb.
Bench tops can be ordered in standard 60" length or in custom lengths and curvatures.





Limestone 60" Bench
with Two Smooth Supports

LS 1174

19" high
60" x 18" top
6" x 13" base of each support
478 lb.



Footings are required under each bench Support. The footings must be level with each other to allow the bench Top to be level. Holes for drift pins are predrilled in the Cut Natural Limestone Top and into the Supports. A mortar bed must be used on top of each footing and each Support to ensure a safe, level and durable installation.
Cut Natural Limestone
Smooth - Bench Support


15" high
6" x 13" top
6" x 13" base
80 lb.



side detail of
Limestone 60" Bench Top


4" high
60" long
18" wide
324 lb.
Bench tops can be ordered in standard 60" length or in custom lengths and curvatures.



Scroll - Bench
with Two Supports
LS 1092


    The Bench Top 60 for the
Scroll Supports is designed to
continue the flow of soft curves
throughout the bench style.



18.5" high
60" x 18" top
6" x 10" base of each support
470 lb.

CAD File


between two Munstead 19 Planters, LS 9042, with a
Munstead 15 Planter, LS 9037, on the far right


Footings are required under each bench Support. The footings must be level with each other to allow the bench Top to be level. Holes for drift pins are predrilled in the Cut Natural Limestone Top and into the Supports. A mortar bed must be used on top of each footing and each Support to ensure a safe, level and durable installation.



Scroll - Bench Support
LS 1077

15" high
6" x 12" top
6" x 10" base
65 lb.

CAD File

side detail of
Scroll Bench Top


3.5" high
60" long
18" wide
340 lb.




Longshadow dry cast limestone Bench Supports are designed to be used with our cut natural limestone tops.

Bench tops can be ordered in standard 60" length or in custom lengths and curvatures.




Fern - Bench
with Two Supports

LS 1091

18.5" high
60" x 26" top
7" x 21" base of each support
690 lb.

CAD File





Footings are required under each bench Support. The footings must be level with each other to allow the bench Top to be level. Holes for drift pins are predrilled in the Cut Natural Limestone Top and into the Supports. A mortar bed must be used on top of each footing and each Support to ensure a safe, level and durable installation.



Fern - Bench Support
LS 1061

15" high
7" x 24" top
7" x 21" base
95 lb.

CAD File


side detail of
Fern Bench Top


3.5" high
60" long
26" wide
500 lb.



Longshadow dry cast limestone Bench Supports are designed to be used with our cut natural limestone tops.

Bench tops can be ordered in standard 60" length or in custom lengths and curvatures.






Hare - Bench
with Three Supports
LS 1093



    The Bench Top 60 for the Hare
Supports has a more angular design
to continue the style of the Hare
Supports throughout the bench.



20" high
60" x 20" top
5" x 17" base of each support
607 lb.

CAD File



Footings are required under each bench Support. The footings must be level with each other to allow the bench Top to be level. Holes for drift pins are predrilled in the Cut Natural Limestone Top and into the Supports. A mortar bed must be used on top of each footing and each Support to ensure a safe, level and durable installation.




Hare - Bench Support
LS 1078

16" high
5" x 11" top
5" x 17" base
97 lb.

CAD File



side detail of
Hare Bench Top


4" high
60" long
20" wide
316 lb.




Longshadow dry cast limestone Bench Supports are designed to be used with our cut natural limestone tops.

Bench tops can be ordered in standard 60" length or in custom lengths and curvatures.





Additional Photographs


Secret Garden Seat
LS 9649

20" high
16" x 11" top
17" x 13" wide
275 lb.

Our Secret Garden Seat was inspired by a seat we saw in Italy.
